DAC Module MS8413 SPDIF Coaxial Optical 24bit 192kHz
DAC Modules
Optical
SPDIFJack 3.5mm
RCAMS8413192kHz
Reference 18641
Bon à savoir
This small, affordable DAC module is equipped with an MS8413 digital-to-analog conversion chip and supports PCM audio streams up to 24bit 192kHz. On the input side, the module features a coaxial jack and a Toslink optical port. Output can be either RCA or 3.5mm jack.€7.90Tax incl.
2 years warranty
Available now
- Paiement sécurisé
- Expédié et facturé depuis la France
- 14 jours pour changer d'avis
Ce qu'il fait
DAC Module MS8413 SPDIF Coaxial Optical 24bit 192kHz

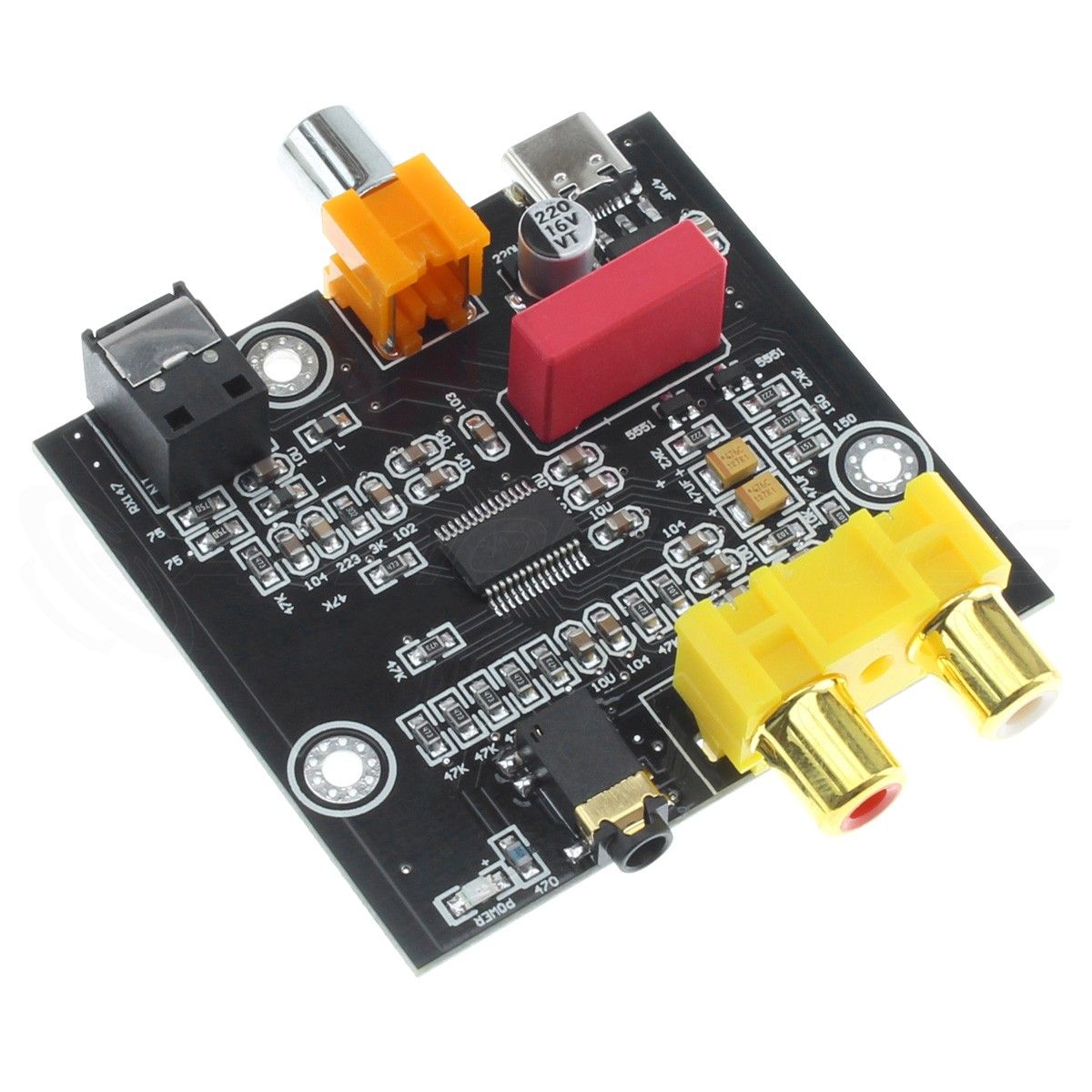

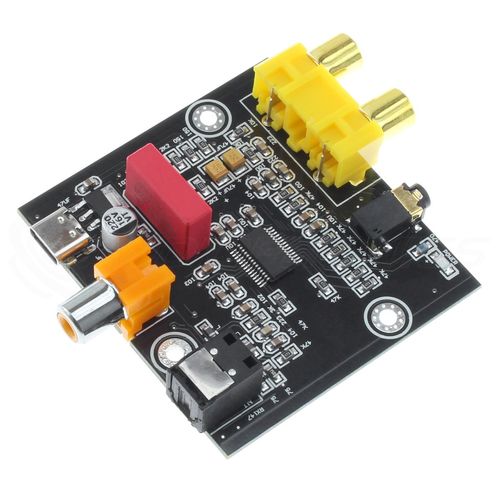

This small, affordable DAC module is equipped with an MS8413 digital-to-analog conversion chip and supports PCM audio streams up to 24bit 192kHz. On the input side, the module features a coaxial jack and a Toslink optical port. Output can be either RCA or 3.5mm jack.
| 1 | USB-C power input |
| 2 | Coaxial input |
| 3 | Optical input |
| 4 | Jack 3.5mm line output |
| 5 | AUX RCA output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC board |
| DAC chip | MS8413 |
| Inputs | 1x Optical Toslink 1x Coaxial |
| Outputs | 1x Jack 3.5mm line output 1x AUX stereo RCA output |
| Supported sampling rates | PCM up to 24bit 192kHz |
| Distorsion | 0.001% |
| General | |
|---|---|
| Supply voltage | 5VDC via USB-C (power supply not included) |
| PCB dimensions | 61 x 57mm |
| Total dimensions | 61 x 76mm |
Data sheet
| Condition | New |
|---|---|
| Input | Optical SPDIF |
| Output | Jack 3.5mm RCA |
| DAC / ADC Chip | MS8413 |
| Max sampling rate | 192kHz |
