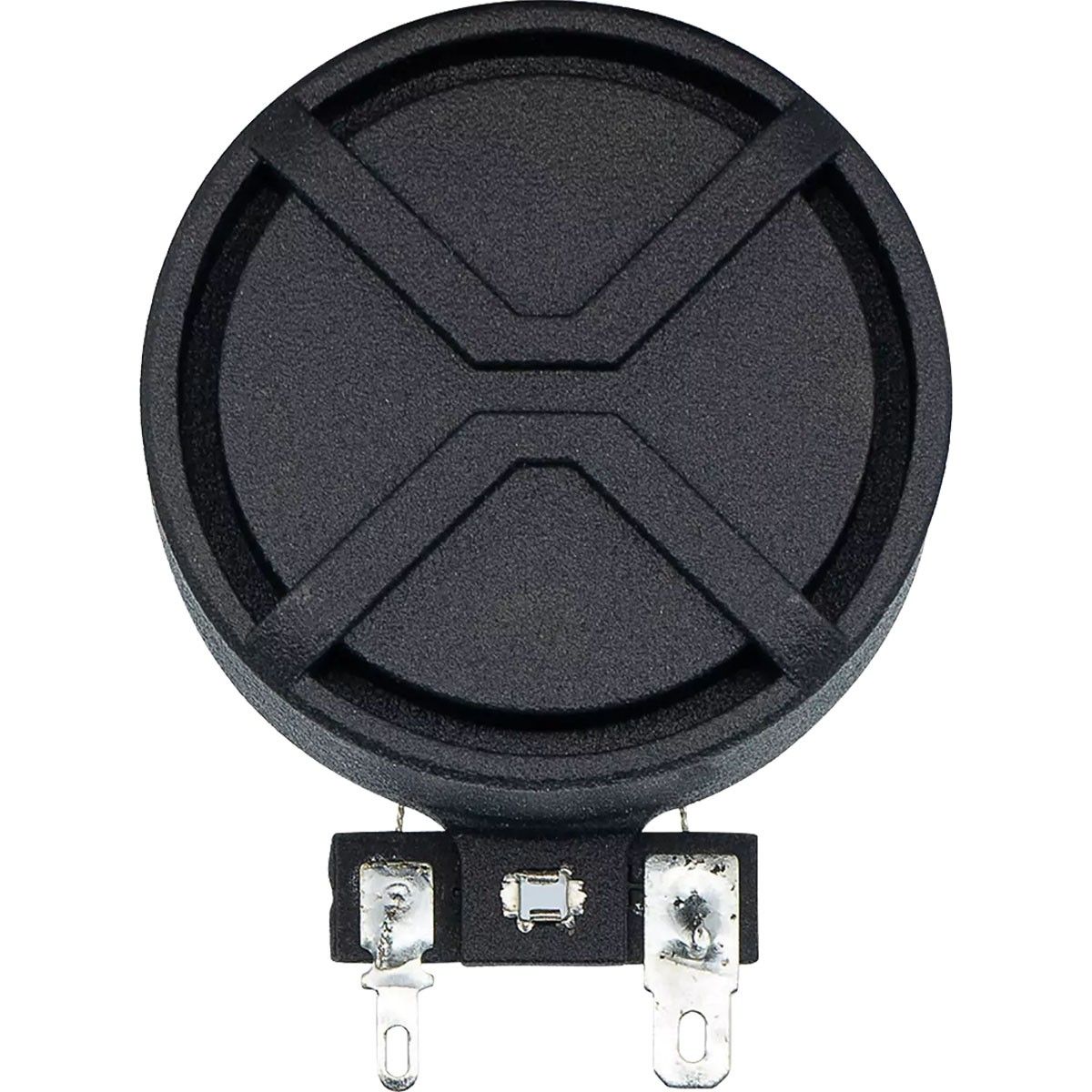

XCITE XT32-4 Speaker Driver Exciter 20W 4 Ohms 35Hz - 17kHz
Exciters
Reference 18801
Bon à savoir
The XCITE XT32-4 exciter features a unique combination of large travel and low inductance, guaranteeing vibrations with the lowest distortion across the entire frequency range. The XT32-4 is equipped with a double neodymium magnet motor, offering excellent power and precision. The XT32-4 is extremely reliable. It has been designed to avoid level drops, and features a heat-resistant, low-loss aramid spider.Including €0.05 for ecotax
Available now
- Paiement sécurisé
- Expédié et facturé depuis la France
- 14 jours pour changer d'avis
Ce qu'il fait
XCITE XT32-4 Speaker Driver Exciter 20W 4 Ohms 35Hz - 17kHz
The XCITE XT32-4 exciter features a unique combination of large travel and low inductance, guaranteeing vibrations with the lowest distortion across the entire frequency range. The XT32-4 is equipped with a double neodymium magnet motor, offering excellent power and precision. The XT32-4 is extremely reliable. It has been designed to avoid level drops, and features a heat-resistant, low-loss aramid spider.
XCITE XT32-4: A very wide frequency response
Discover the whole frequency range from a single Exciter. The XT32-4 covers 35Hz to 17kHz. Most exciters are limited by their larger inductivity or a significant voice coil break-up. Not the XT32-4. Its impressively low inductance of just 0.13 mH and optimized voice coil design guarantee a real high-frequency performance.
XCITE XT32-4: A precise, powerful speaker
Discover the power and precision of the XT32-4! Engineered with a symmetrical force factor and a high-flux design. The double magnet neodymium motor design ensures dynamic, distortion-free audio on any surface. The combination of a 4Ohm voice coil and powerful neodymium magnet increases sensitivity while economizing power, perfect for smaller and medium-sized amplifiers.
XCITE XT32-4: An ultra-low distortion speaker
Designed for minimal distortion, the XT32-4 guarantees an authentic audio experience. By reducing Force Factor, Stiffness, and Inductivity variations, it limits harmonic and intermodulation distortions. Enjoy your favorite music, movies, and games with unparalleled precision and clarity.
XCITE XT32-4: A speaker designed to be durable

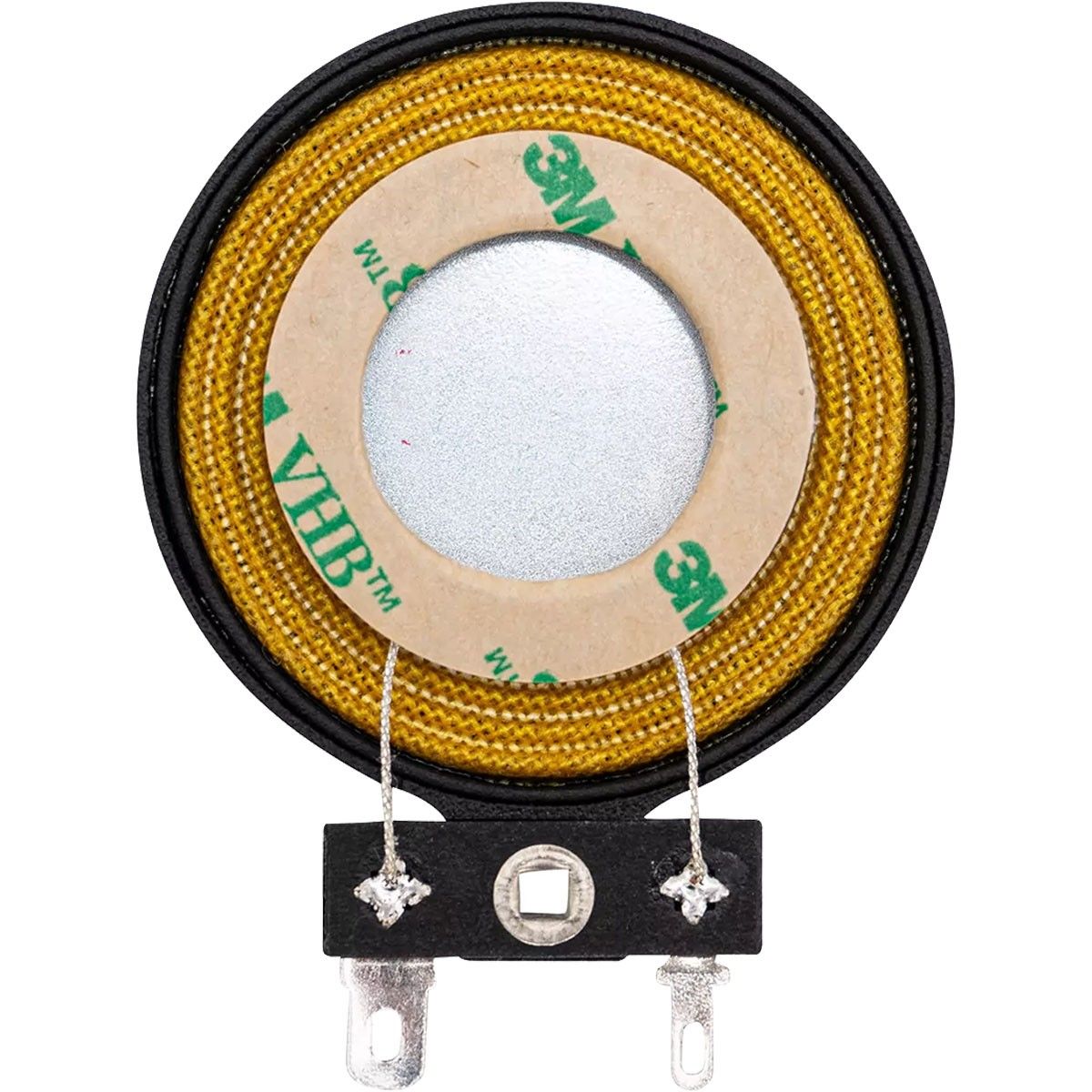

The XT32-4 will be your trusted audio companion for years to come. Featuring a high-quality, low-degradation conex spider and a design preventing displacements over 3.5mm, the XT32-4 is built to perform consistently under any condition. It comes with pre-applied 3M VHB adhesive for easy installation. No matter how intense your usage, the XT32-4 is designed to deliver consistent, reliable performance every single time.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Exciter |
| Frequency response | 35Hz - 17kHz |
| Impedance | 4 Ohms |
| Power handling | RMS : 20W Max : 40W |
| Nominal diameter | Ø 32 mm |
| Thiele & Small | |
|---|---|
| Voice coil inductance (Le) | 0.13 mH @ 1 kHz |
| Voice coil resonant frequency (Fs) | 312 Hz |
| Magnet resonant frequency (Fs) | 40.5 Hz |
| DC resistance (Re) | 3.66 ohms |
| Voice coil moving mass (Mms) | 2.22 g |
| Magnet moving mass (Mms) | 40.5 g |
| Excursion linéaire max (Xmax) | 1.6 mm |
| Mechanical resistance of the voice coil suspension (Rms) | 0.20 Kg/s |
| Mechanical resistance of the magnet suspension (Rms) | 1.79 Kg/s |
| Voice coil mechanical quality factor (Qsm) | 21.9 |
| Magnet coil mechanical quality factor (Qsm) | 18.7 |
| Voice coil electrical quality factor (Qes) | 0.91 |
| Magnet electrical quality factor (Qes) | 6.42 |
| Voice coil total quality factor (Qts) | 0.87 |
| Magnet total quality factor (Qts) | 4.78 |
Data sheet
| Condition | New |
|---|---|
| Speaker Power (W RMS) | 20.0 |
| Speaker Type | Exciter |
| Impedance (Ω) | 4 |
| Loudspeaker diameter (mm) | 32.0 |
| Diaphragm type | N/A |
| Efficiency / Sensitivity (dB) | N/A |
| Max Linear Excursion (Xmax) (mm) | 1.6 |
| Lowest frequency (Hz) | 35 |
| Highest frequency (Hz) | 17000 |
