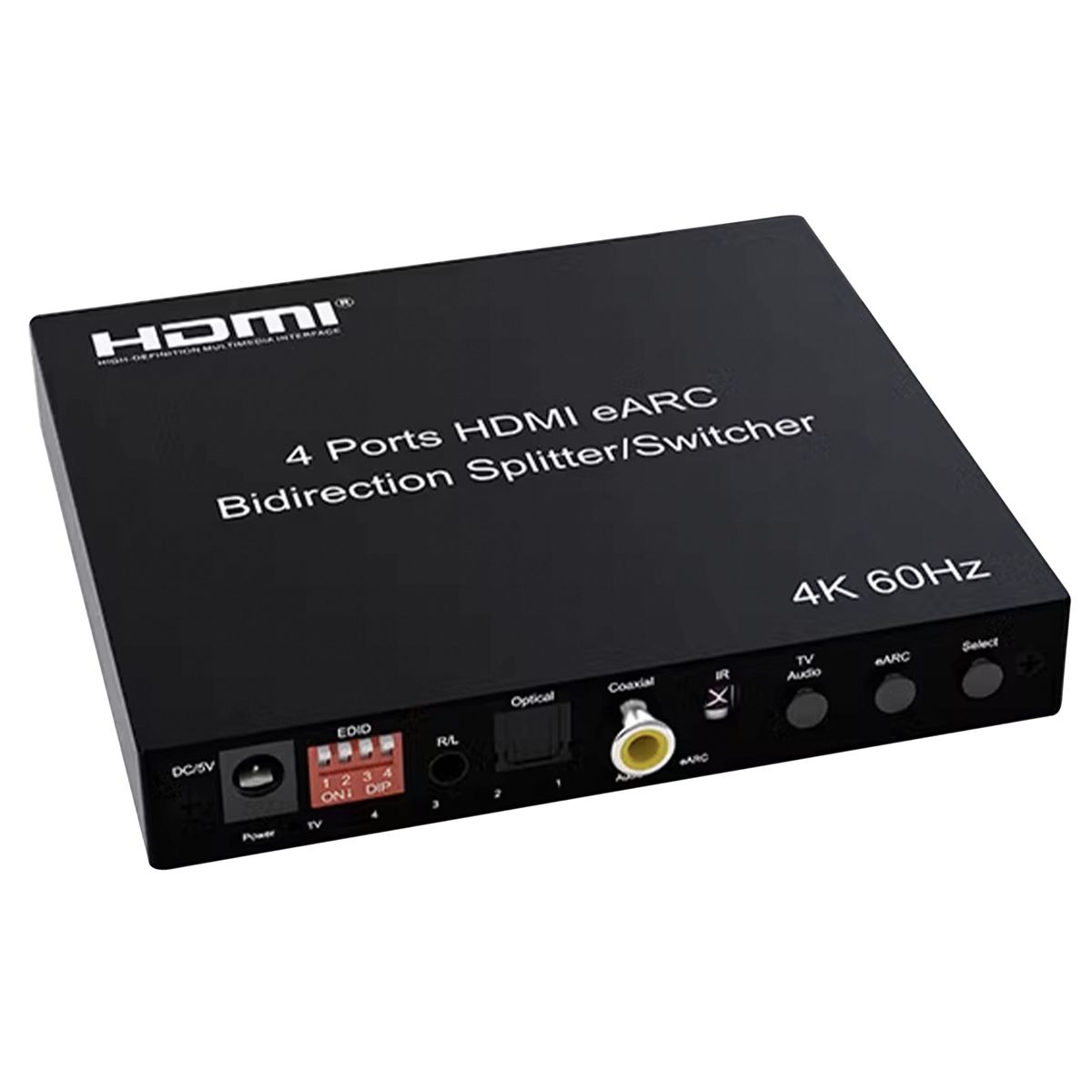

Switch / Splitter HDMI eARC Bidirectional 4K 60Hz HDMI 4x1 eARC 1x4 with Optical Toslink / Coaxial

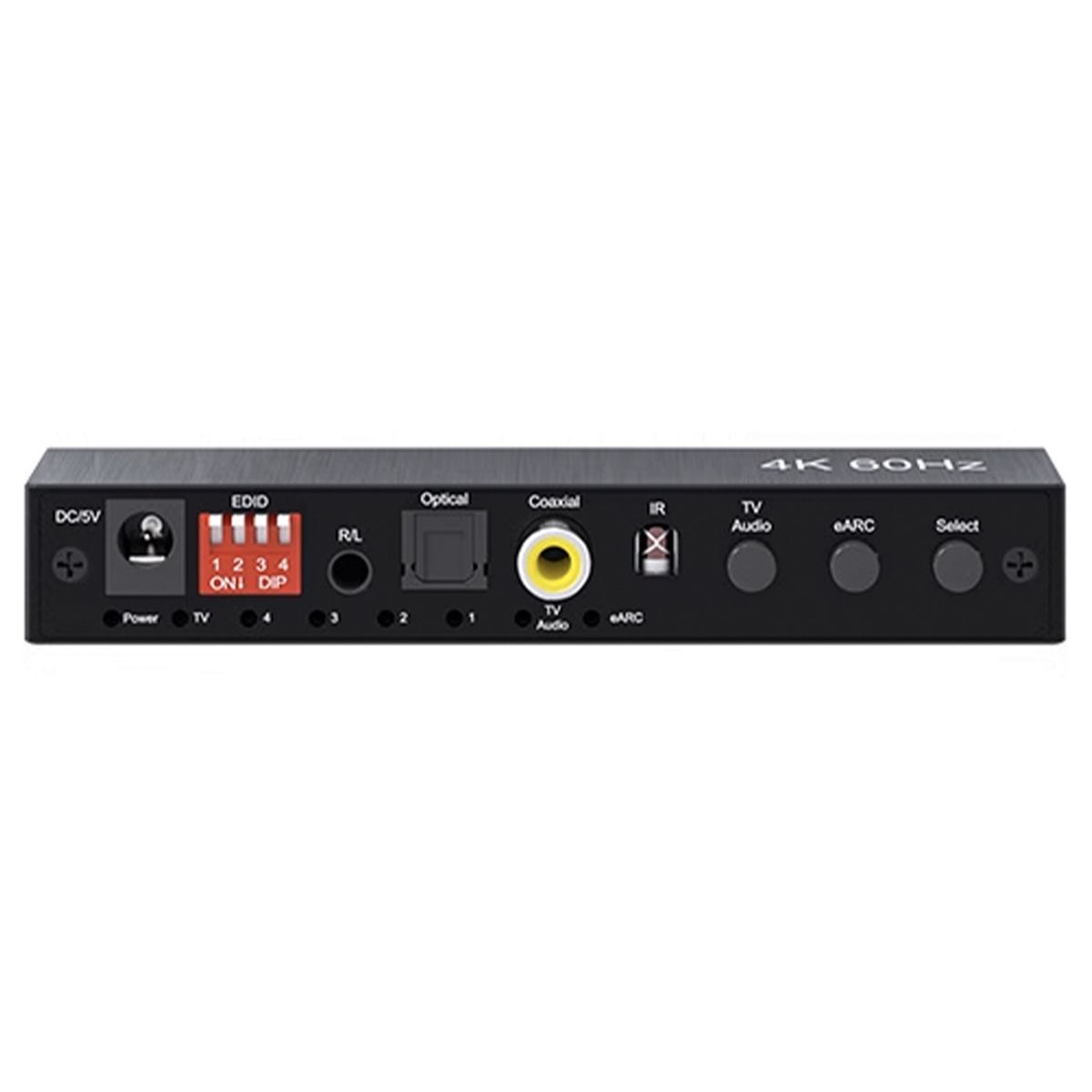

This eARC HDMI switch/splitter offers extensive connectivity and exceptional flexibility to suit all multimedia configurations. It supports a wide range of HDMI sources, such as game consoles, computers, TVs and projectors. It can connect up to four HDMI sources to a single display or projector, and operates in bidirectional mode with up to 7.1 channels of eARC technology. In addition to HDMI inputs and outputs, this device is equipped with a 3.5mm headphone output, a Toslink optical output and a coaxial output for easy connection to a Hi-Fi system. Dedicated control buttons allow you to manage the various functions, including an EDID DIP switch for manual EDID (Extended Display Identification Data) configuration and resolution of display or sound problems.

The top DIP switch corresponds to position 0, while the bottom DIP switch corresponds to position 1. The 4th DIP switch selects the device operating mode: 0 for the switch and 1 for the splitter.
