The DOUK Audio VU56PRO is an RGB LED VU meter with 8 display effects, operating effectively on the 20Hz-20KHz frequency band. The signal input is via stereo RCA or 3.5mm Aux jack, but it is also possible to use the VU56PRO's built-in microphone so that the signal does not pass through the device.€99.00Tax incl.
Including €0.05 for ecotax
2 years warranty
Last items in stock!
- Paiement sécurisé
- Expédié et facturé depuis la France
- 14 jours pour changer d'avis
Ce qu'il fait

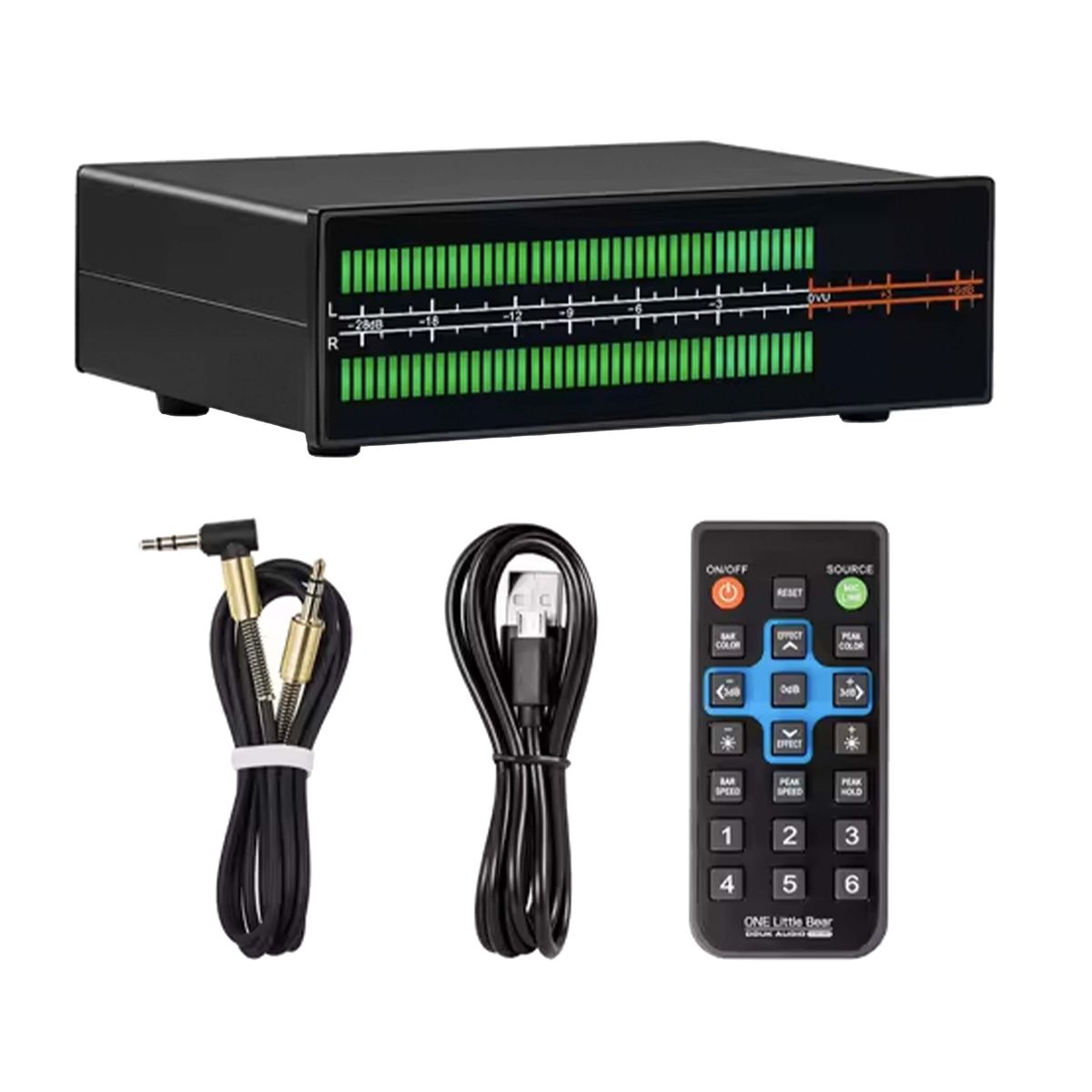

DOUK AUDIO VU56PRO RGB LED VU Meter Mic+Line
The DOUK Audio VU56PRO is an RGB LED VU meter with 8 display effects, operating effectively on the 20Hz-20KHz frequency band. The signal input is via stereo RCA or 3.5mm Aux jack, but it is also possible to use the VU56PRO's built-in microphone so that the signal does not pass through the device. However, if you decide to pass the signal through it, it has an RCA or 3.5mm Aux jack output. The VU56PRO is powered by 5V 1A via micro-USB and comes with a remote control for remote operation.
DOUK Audio VU56PRO overview
| 1 | RCA output |
| 2 | RCA input |
| 3 | 3.5mm Aux jack output |
| 4 | 3.5mm AUX Jack Input |
| 5 | Power / Display Effect Selector |
| 6 | Line / Microphone input selection |
| 7 | Built-in microphone |
| 8 | 5V micro USB power supply |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Vumeter |
| Inputs | 1x Stereo RCA 1x 3.5mm Aux Jack |
| Outputs | 1x Stereo RCA 1x 3.5mm Aux Jack |
| Max input level | 2.5Vrms |
| Max. effective input level | 1.8 Vrms (the VU56 PRO will always display full power when this value is exceeded) |
| Monitoring frequency range | 20Hz-20kHz |
| Input impedance | 10KΩ |
| Brightness adjustment | 4 level |
| Display color | Green or red |
| Display effects | 8 effects |
| Display length gain | 3 levels adjustable (-3 dB, 0 dB, +3 dB) |
| Display mode | PPM mode (peak programme meter) / VU Mode (volume unit) |
| Holding time of peak LED | Adjustable |
| Drop speed of main bar/peak LED | Adjustable |
| Remote control | |
| General | |
|---|---|
| Power suply | DC 5V (≥1A) via micro USB |
| Dimensions | 154 x 116 x 47mm |
| Weight | 400g |
| Color | Black |
| Package | 1x DOUK Audio VU56PRO VU meter 1x 3.5mm AUX jack cable 1x Remote control (requires CR2025 battery, not included) 1x USB-A to Micro USB power cable (AC adapter not included) |
Data sheet
| Condition | New |
|---|
