This source selection module has 4 stereo RCA inputs and one output. A rotary selector is used to select an input / ouput (work both ways). A series of 4 LEDs indicates the active source.€28.90Tax incl.
2 years warranty
Available on order
- Paiement sécurisé
- Expédié et facturé depuis la France
- 14 jours pour changer d'avis
Ce qu'il fait

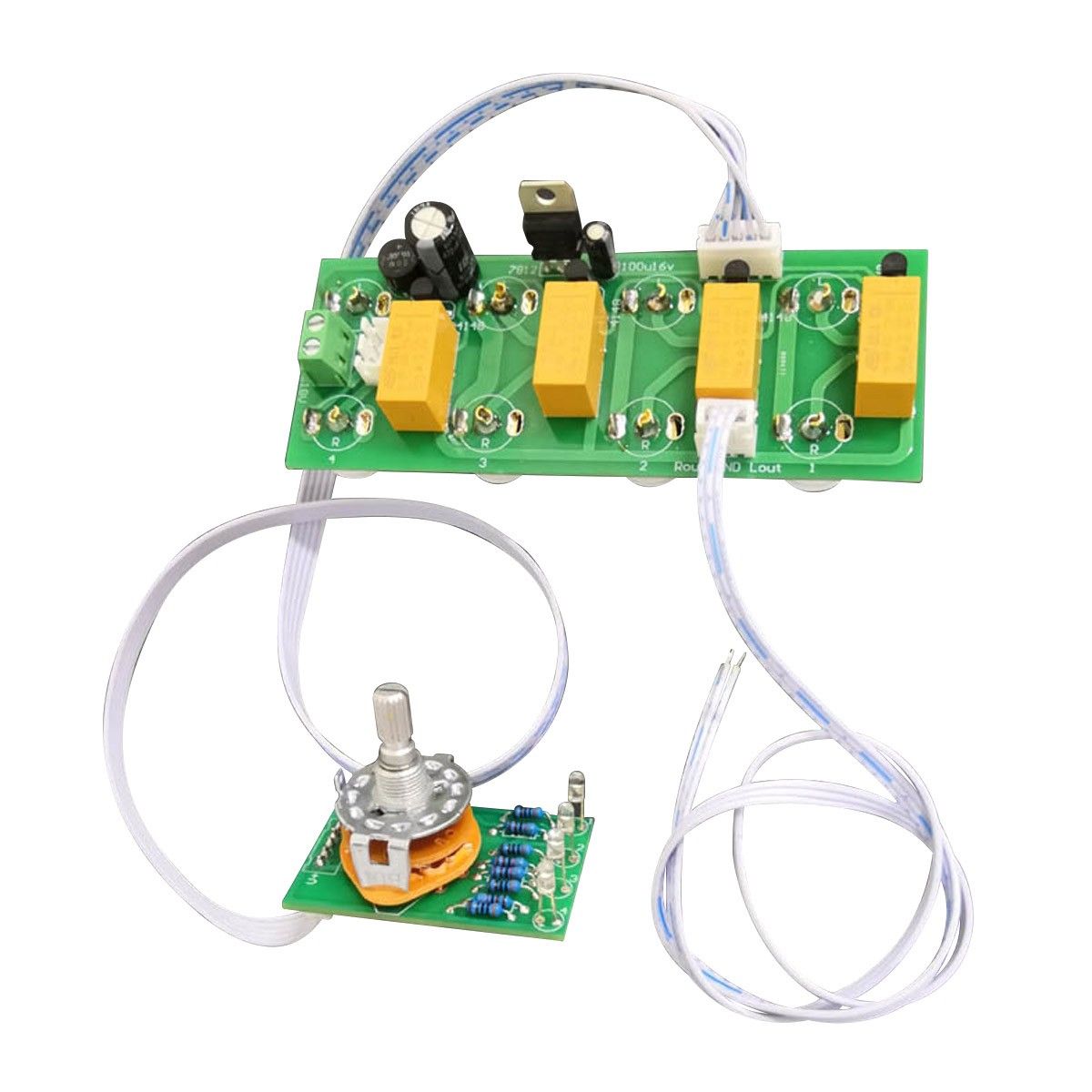

Source Selector Board
4 Inputs with Light indicators
This source selection module has 4 stereo RCA inputs and one output. It can also work the opposite way : 4 outputs and one input. A rotary selector is used to select the active input/ouptut. A series of 4 LEDs indicates the active source. The module is powered by 12-15VAC.
A Bluetooth receiver module (not included) can be connected via a 3-pin connector. In this case, the 4th RCA input must remain unused.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Input selection board |
| Inputs | 4x Stereo RCA 1x Bluetooth input (optional, Bluetooth module sold separately, replaces 4th RCA input) |
| Output | 1x Analog output on 3-pin connector (cable to bare wires included) |
| General | |
|---|---|
| Supply voltage | 12-15VAC on screw terminal (power supply sold separately) |
| Input/output module dimensions | 120 x 45mm |
| Potentiometer module dimensions | 50 x 30mm |
| Potentiometer shaft diameter | Ø6mm (notched) |
Data sheet
| Condition | New |
|---|---|
| Input | RCA |
| Output | PCB Connector |
| Channel | 2 (Stereo) |
Avis
Comments (0)
No customer reviews for the moment.
€28.90Source Selector Board 4 Inputs
